Version Next

Upgrade via ArgoCD

This guide describes the process of upgrading TDP Kubernetes components using ArgoCD as a GitOps tool.
With ArgoCD, upgrades are managed declaratively through Application manifests stored in the Git repository.

tip

With the GitOps pattern, an upgrade consists of editing the manifests in the Git repository — ArgoCD detects the change and applies it automatically to the cluster.

Preparation
Upgrade
Validation
Troubleshooting

Upgrade Preparation

Before modifying the manifests, verify the current state of the cluster.

Commands
Videos

Verify Application State

List all TDP Applications and their status:

Terminal input

argocd app list

Figure 1 - TDP Applications and their status

What to validate:

All Applications must have STATUS Synced
All must have HEALTH Healthy

Why validate before upgrading:

Confirm that the current cluster state matches the desired state in Git
Ensure there are no pending reconciliation errors
Avoid starting the upgrade on an already inconsistent or degraded Application

Verify pods and workload readiness

Terminal input

kubectl get pods -n <namespace>

Figure 2 - Verify Pods

Terminal input

kubectl get statefulset -n <namespace>

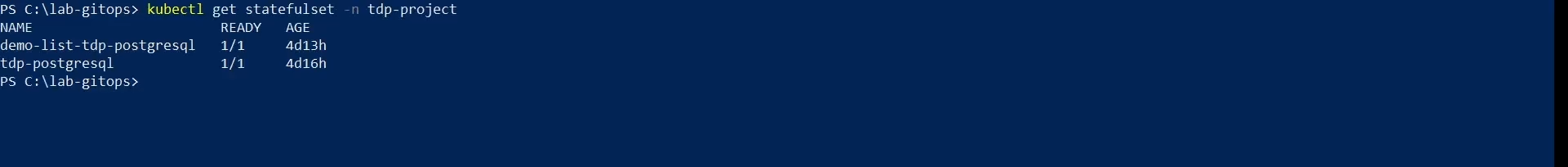

Figure 3 - Verify StatefulSets

If the application uses a Deployment, also validate:

Terminal input

kubectl get deploy -n <namespace>

What to validate:

Pods have STATUS Running
The READY column for pods is complete, for example 1/1
StatefulSets or Deployments show all replicas ready, for example 1/1, 2/2, or 3/3

Why validate before upgrading:

Ensure the application is already stable before the change
Avoid confusing a pre-existing failure with one caused by the upgrade
Reduce the risk of downtime during the process

Verify Helm Releases

Terminal input

helm list -n <namespace>

Figure 4 - Verify Helm Releases

Confirm the installed versions and the deployed status of each release.

Upgrading Application Manifests

Upgrading via ArgoCD consists of modifying the Application manifests in the Git repository, changing the chart version (targetRevision) to the new desired version.

Commands
Videos

Change the Chart Version

Edit the Application manifest of the component you want to upgrade. The targetRevision field defines the Helm Chart version used. Example for PostgreSQL (the base component that is usually installed first):

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: tdp-postgresql
  namespace: argocd
spec:
  project: default
  source:
    chart: tdp-postgresql
    repoURL: oci://registry.tecnisys.com.br/tdp
    targetRevision: "0.1.0"  # Change to the new desired version
    helm:
      valueFiles:
        - values.yaml
  destination:
    server: https://kubernetes.default.svc
    namespace: <namespace>
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

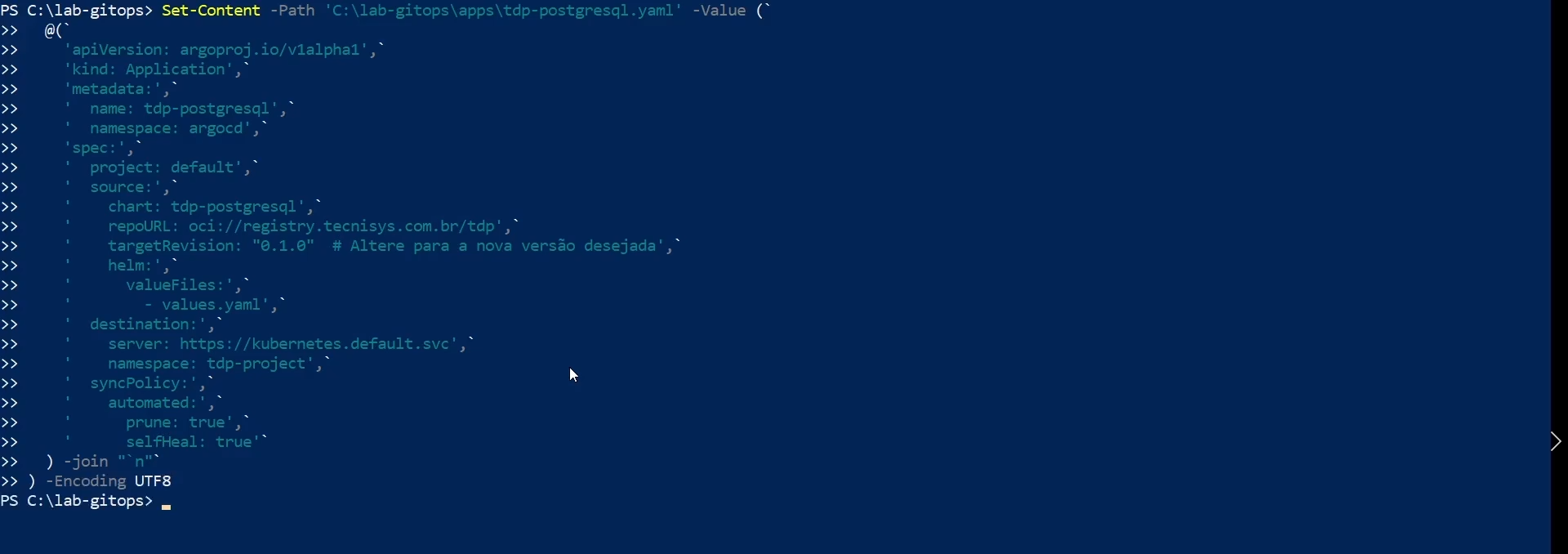

Figure 1 - Editing the Manifest

Change Configuration Values

To update configuration values along with the version, modify the helm.values field or the referenced values.yaml file. Example for PostgreSQL (resources, storage, etc.):

spec:
  source:
    chart: tdp-postgresql
    repoURL: oci://registry.tecnisys.com.br/tdp
    targetRevision: "0.1.0"
    helm:
      values: |
        primary:
          resources:
            requests:
              memory: 2Gi
              cpu: "1"
        persistence:
          size: 20Gi

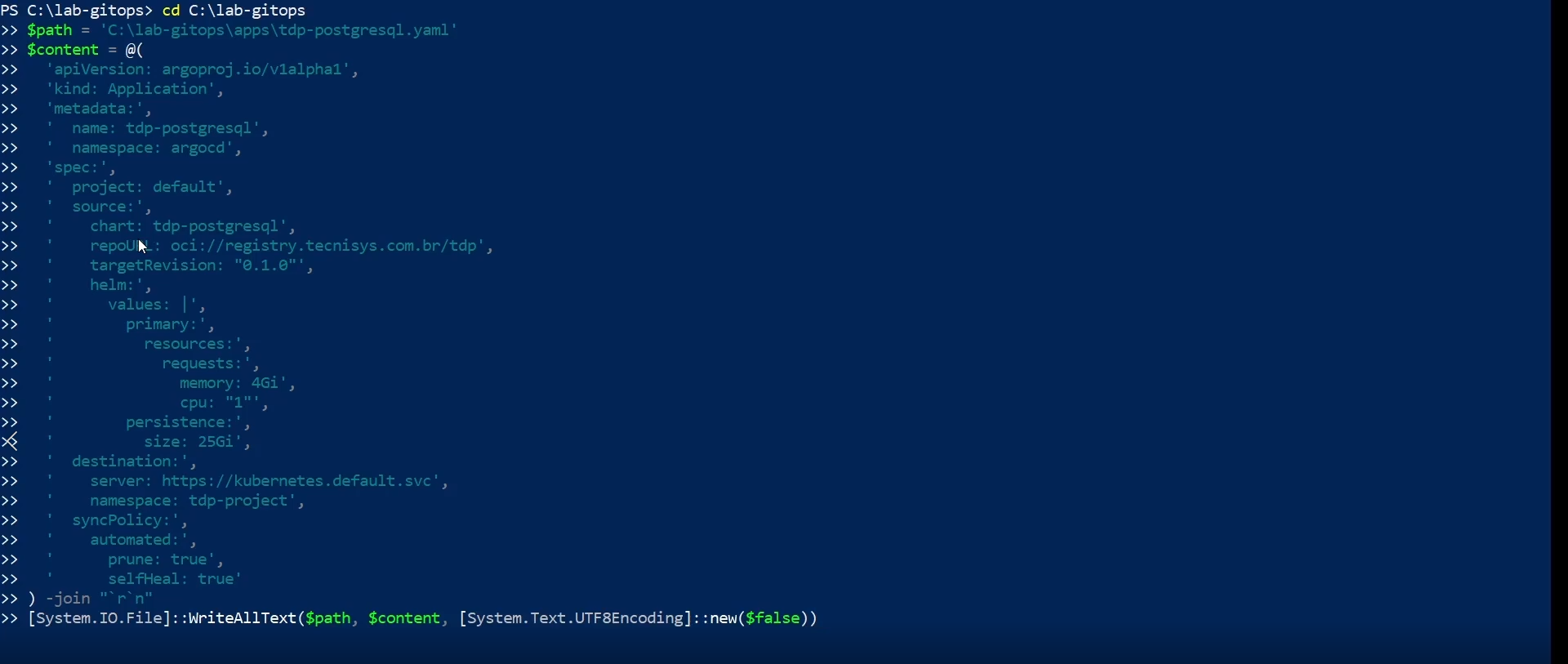

Figure 2 - Editing the Manifest - configuration

Commit the Changes to Git

After editing the manifests, commit and push the changes to the Git repository:

Terminal input
git add apps/
git commit -m "chore: upgrade tdp-postgresql to new version"
git push origin main

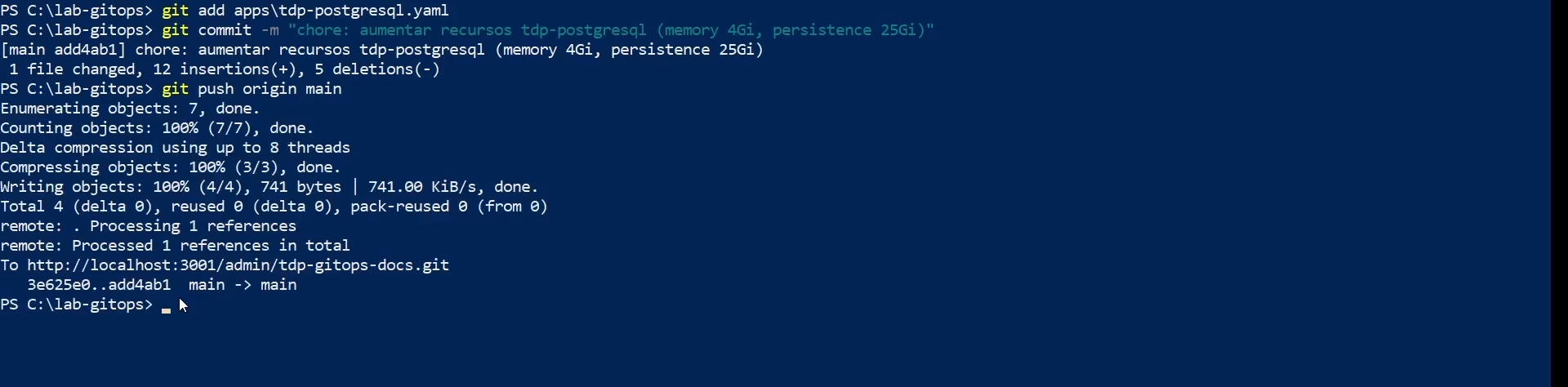

Figure 3 - Commit changes to Git

ArgoCD will automatically detect the changes in the repository and start the synchronization process, according to the configured sync strategy.

Synchronization Strategies

Automatic Synchronization

With automatic synchronization enabled, ArgoCD applies detected Git changes without manual intervention:

syncPolicy:
  automated:
    prune: true      # Removes resources no longer in Git
    selfHeal: true   # Corrects drift between actual and desired state

info

Automatic synchronization is recommended for development and staging environments. In production, consider manual synchronization for greater control.

Manual Synchronization

For production upgrades, disable automatic synchronization and perform sync manually:

syncPolicy: {}  # No automatic policy

Terminal input

argocd app sync tdp-postgresql

Figure 4 - Manual synchronization

Or click the Sync button on the Application in the ArgoCD web interface.

Sync Waves

To control the upgrade order of components, use sync waves. Resources with lower wave values are synchronized first:

metadata:
  annotations:
    argocd.argoproj.io/sync-wave: "1"

Wave	Components
0	CRDs (`tdp-argo-crds`)
1	Infrastructure (`tdp-argo`, `tdp-postgresql`)
2	Messaging (`tdp-kafka`)
3	Storage (`tdp-hive-metastore`, `tdp-iceberg`, `tdp-ozone`, `tdp-deltalake`)
4	Security (`tdp-ranger`)
5	Processing (`tdp-nifi`, `tdp-spark`, `tdp-trino`, `tdp-clickhouse`)
6	Tools (`tdp-airflow`, `tdp-jupyter`, `tdp-superset`, `tdp-openmetadata`, `tdp-cloudbeaver`)

Progressive Rollouts

Dry Run

Simulate the synchronization before applying to verify what will be changed:

Terminal input

argocd app sync tdp-postgresql --dry-run

Diff Preview

View the differences between the current cluster state and the desired state in Git:

Terminal input

argocd app diff tdp-postgresql

Selective Synchronization

Synchronize only specific resources of an Application, rather than all at once:

Terminal input

argocd app sync tdp-postgresql --resource apps:StatefulSet:tdp-postgresql

Post-Upgrade Validation

After applying the changes to the Git repository, use the commands below to monitor the synchronization state.

Commands
Videos

Verify Application Status

Terminal input

argocd app list

Figure 1 - TDP Applications and their status

Sync Status	Description
Synced	The cluster state matches what is declared in the manifest
OutOfSync	There are differences between the manifest and the cluster
Unknown	ArgoCD could not determine the status

Health Status	Description
Healthy	All Application resources are operational
Progressing	Resources are being created or updated
Degraded	One or more resources have issues
Suspended	Synchronization is paused

Verify a Specific Application

Terminal input

argocd app get tdp-postgresql

Figure 2 - Verify the postgresql application

To monitor progress in real time:

Terminal input

argocd app wait tdp-postgresql --sync

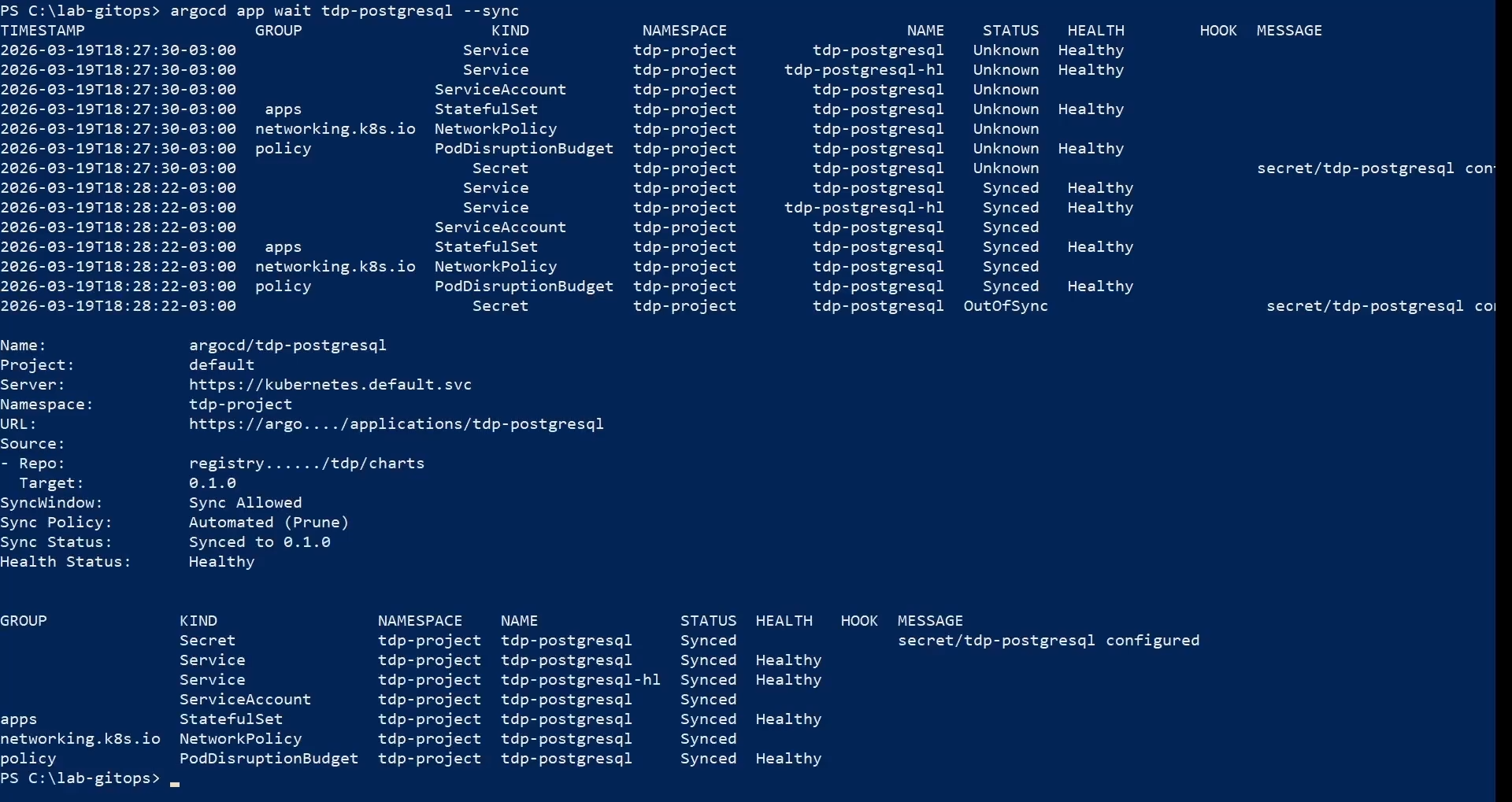

Figure 3 - Monitor progress in real time

Verify Resource Health

Terminal input

argocd app wait tdp-postgresql --health

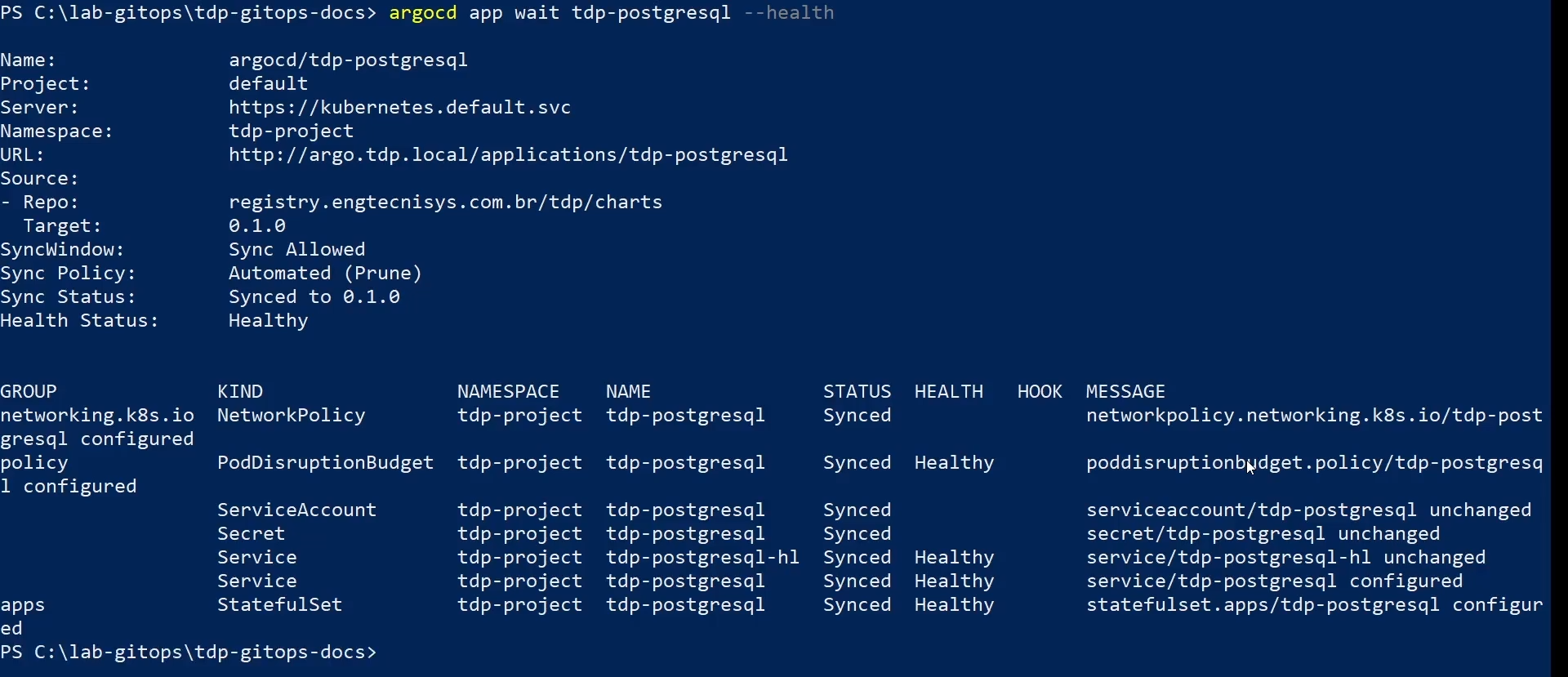

Figure 4 - Verify resource health

Verify pods and workload readiness

Terminal input

kubectl get pods -n <namespace>

Figure 5 - Verify Pods

Terminal input

kubectl get statefulset -n <namespace>

Figure 6 - Verify StatefulSets

If the application uses a Deployment, also validate:

Terminal input

kubectl get deploy -n <namespace>

What to confirm:

Pods have STATUS Running
The READY column for pods is complete, for example 1/1
StatefulSets or Deployments show all replicas ready, for example 1/1, 2/2, or 3/3

Verify Helm Revision

Confirm that the release revision was incremented successfully:

Terminal input

helm history <release> -n <namespace>

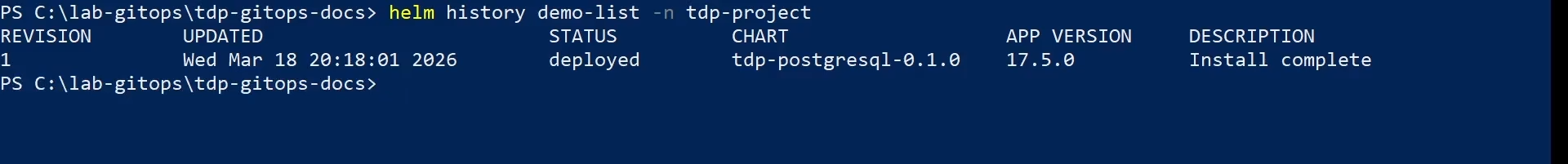

Figure 7 - Verify Helm Revision

Troubleshooting

Commands
Video

Application OutOfSync or Degraded

If an Application shows OutOfSync or Degraded status:

Check operation details and errors:
Terminal input
```
argocd app get tdp-postgresql --show-operation
```

Analyze the ArgoCD controller logs:

Terminal input

kubectl logs -n argocd -l app.kubernetes.io/name=argocd-application-controller --tail=200

Try synchronizing manually:
Terminal input
```
argocd app sync tdp-postgresql
```

Synchronization Conflicts

If there are manually modified resources in the cluster that conflict with Git:

Option 1 — Force synchronization (overwrites the cluster with Git):

Terminal input

argocd app sync tdp-postgresql --force

Option 2 — Self-heal (lets ArgoCD automatically correct drift):

syncPolicy:
  automated:
    selfHeal: true

Automatic Retry

Configure automatic retry so ArgoCD retries on temporary failures:

syncPolicy:
  retry:
    limit: 5
    backoff:
      duration: 5s
      factor: 2
      maxDuration: 3m

Revert the Upgrade

If the upgrade fails and needs to be reverted, change the targetRevision in the Git manifest back to the previous version and commit:

Terminal input

git revert HEAD
git push origin main

ArgoCD will detect the reversion and synchronize the cluster to the previous state.

tip

For more details on rollback, see the Rollback page.
